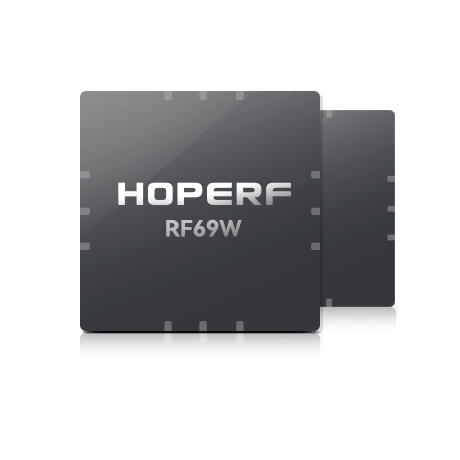

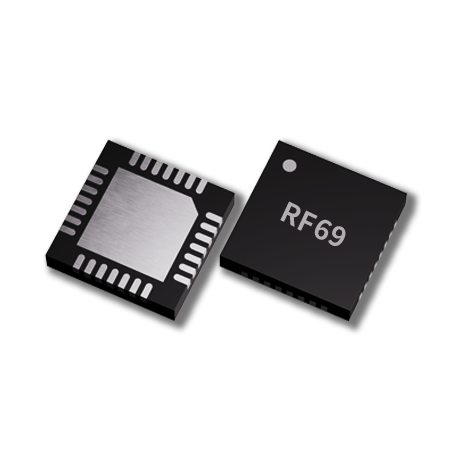

1. Descriptions of Wireless RF Transceiver IC RF69W:


The RF69W is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands.


Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RF69W offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components.


The RF69W is optimized for low power consumption while offering high RF output power and channelized operation. TrueRF™ technology enables a low- cost external component count (elimination of the SAW filter) whilst still satisfying ETSI and FCC regulations.


2. Features of Wireless RF Transceiver IC RF69W:


● +20 dBm - 100 mW Power Output Capability

● High Sensitivity: down to -120 dBm at 1.2 kbps

● High Selectivity: 16-tap FIR Channel Filter

● Bullet-proof front end: IIP3 = -18 dBm,

   IIP2 = +35 dBm,80 dB Blocking Immunity, no Image Frequency response

● Low current: Rx = 16 mA, 100nA register retention

● Programmable Pout: -18 to +20 dBm in 1dB steps

● Constant RF performance over voltage range of chip

● FSK Bit rates up to 300 kb/s

● Fully integrated synthesizer with a resolution of 61 Hz

● FSK, GFSK, MSK, GMSK and OOK modulations

● Built-in Bit Synchronizer performing Clock Recovery

● Incoming Sync Word Recognition

● 115 dB+ Dynamic Range RSSI

● Automatic RF Sense with ultra-fast AFC

● Packet engine with CRC-16, AES-128, 66-byte FIFO

● Built-in temperature sensor


3. Applications of Wireless RF Transceiver IC RF69W:


● Automated Meter eading

● Wireless Sensor Networks

● Homeand Building Automation

● Wireless Alarm and Security Systems

● Industrial Monitoring and Control

● Wireless M-BUS
