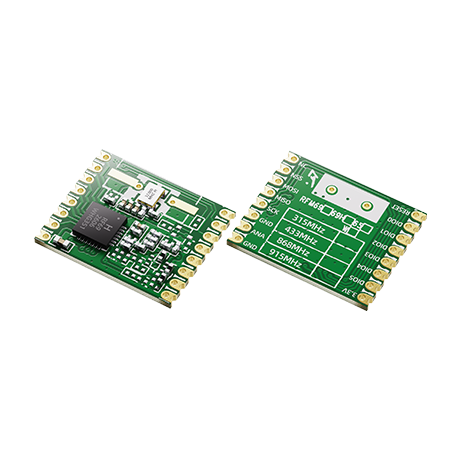

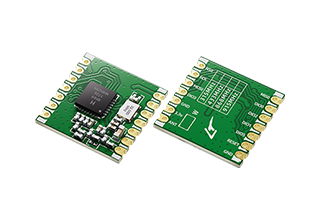

RFM69W

RF Transceiver


1. Descriptions of RF Transceiver Module RFM69W:


The RFM69W is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands. Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them  can  be  dynamically set.


The  RFM69W  offers  the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RFM69W is optimized for low power consumption while offering high RF output power and channelized operation. TrueRF™ technology enables a low- cost  external component count  (elimination of  the  SAW filter) whilst still satisfying ETSI and FCC regulations.


2. Features of RF Sub-Ghz Transceiver Module RFM69W:


● +13 dBm  Power Output Capability

● High Sensitivity: down to -120 dBm at 1.2 kbps

● High Selectivity: 16-tap FIR Channel Filter

● Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80 dB Blocking Immunity, no Image

● Frequency response

● Low current: Rx = 16 mA, 100nA register retention

● Programmable Pout: -18 to +13 dBm in 1dB steps

● Constant RF performance over voltage range of chip

● FSK Bit rates up to 300 kb/s

● Fully integrated synthesizer with a resolution of 61 Hz

● FSK, GFSK, MSK, GMSK and OOK modulations

● Built-in Bit Synchronizer performing Clock Recovery

● Incoming Sync Word Recognition

● 115 dB+ Dynamic Range RSSI

● Automatic RF Sense with ultra-fast AFC

● Packet engine with CRC-16, AES-128, 66-byte FIFO

● Built-in temperature sensor


3. Applications of RF Transceiver Module RFM69W:


● Automated Meter reading

● Wireless Sensor Networks

● Home and Building Automation

● Wireless Alarm and Security Systems

● Industrial Monitoring and Control

● Wireless M-BUS
