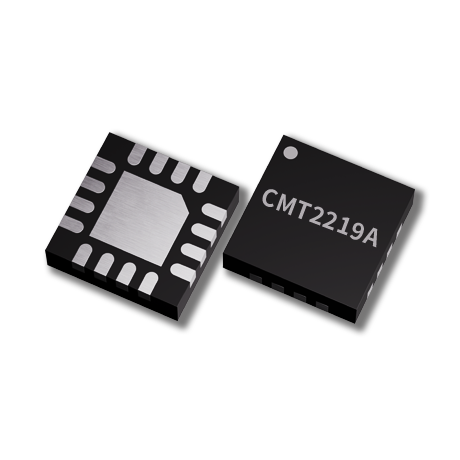

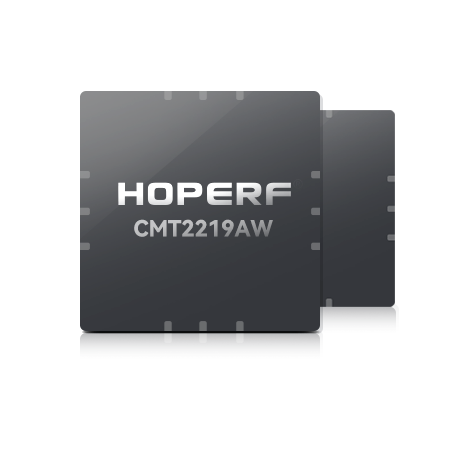

CMT2219AW

300 – 960 MHz OOK/(G)FSK Receiver



1.Descriptions


The CMT2219A is an ultra low power, high performance, OOK and (G)FSK receiver for various 300 to 960 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. All features can be configured either by off-line EEPROM programming or on-line registers writing. The configuration file to be written into the registers is generated by the smart RFPDK. The CMT2219A operates from a supply voltage of 1.8 V to 3.6V, when it is always on, it consumes only 5.7 mA current while achieving -109 dBm receiving sensitivity (FSK, 9.6 ksps symbol rate, 868.35 MHz), and only 60 nA sleep current for superior battery life. The device supports packet handling, 32-byte FIFO, Manchester decoding and data de-whitening for the received data processing. Besides the demodulated data and the sync clock, the device can also send out the power-on reset, the system clock, as well as 2

configurable interrupts for the external device. CMT2219A receiver together with the CMT211xA transmitter enables a powerful RF link.


2. Features


  • Optional Chip Feature Configuration Schemes

  • On-Line Registers Configuration

  • Off-Line EEPROM Programming

  • Frequency Range: 300 to 960 MHz

  • FSK, GFSK and OOK Demodulation

  • Symbol Rate: 0.1 to 100 ksps

  • Sensitivity: -109 dBm @ 9.6 ksps, FSK, 868.35 MHz

  • 4-wire SPI Interface

  • Direct, Buffer and Packet Mode Supported

  • Configurable Data Handler and 32-Byte FIFO

  • Manchester Decoding and Data De-Whitening

  • Supply Voltage: 1.8 to 3.6 V

  • Low Power Consumption: 5.7 mA

  • Low Sleep Current

  • 60 nA when Sleep Timer Off

  • 440 nA when Sleep Timer On

  • RoHS Compliant

  • 16-pin QFN 3x3 Package


3. Applications


  • Low-Cost Consumer Electronics Applications

  • Home and Building Automation

  • Infrared Receiver Replacements

  • Industrial Monitoring and Controls

  • Remote Automated Meter Reading

  • Remote Lighting Control System

  • Wireless Alarm and Security Systems

  • Remote Keyless Entry (RKE)


Design documents and resources
DEMO & Tools:
RFPDK_V1.53_Update4_Setup
2022-12-08
WriterConfig_V1.4.3_Beta1_Setup
2023-06-09
Design Guides:
AN138 CMT2219A Configuration Guideline_EN_V0.9_20190621
2019-06-24
Certification & Test Reports:
RF IC ROHS
2023-05-05
RF IC REACH
2023-05-05
