RFM300W

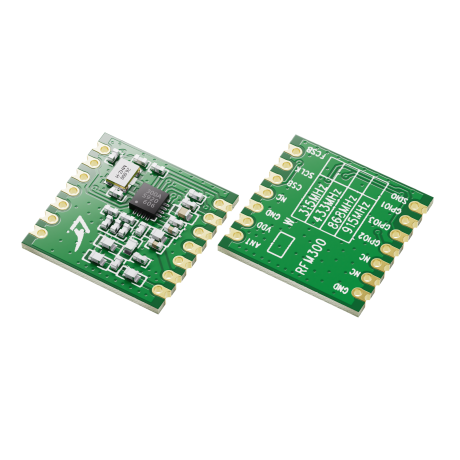

ISM TransceiverModule With +20dBm(100mW) Output Power


1. General Introduction:


RFM300H/RFM300module series’ design is based on the high performanceCMOSTEK NextGenRFTM CMT2300 chip, Itoperate at 433/868/915MHz ISM band , The low receive sensitivity(–120dBm) coupled with +20dBm (RFM300H)/+13dBm(RFM300) output power ensures extended range and improved link performance.


2. Features:


  • 140dB maximum link budget.

  • Low RX current of 7mA.

  • +20 dBm output power @RFM300H; +13 dBm output power @RFM300.

  • Programmable bit rate up to 300 kbps@FSK/40 kbps@OOK

  • High sensitivity: down to -120dBm.

  • FSK, GFSK, and OOK modulation.

  • SMD Package (16x16X1.8mm)


3. Application:


  • Meter Reading

  • Wireless data collection

  • Automobile security system

  • Home automation and security system


Design documents and resources
DEMO & Tools:
CMOSTEK WriterConfig V1.4.1-
2020-06-09
CMOSTEK RFPDK_V1.51
2020-04-27
Design Guides:
AN143-CMT2300A FIFO and Packet Format Usage GuideLine_EN
2019-03-27
AN140-CMOSTEK User Manual_V1.3
2018-12-05
AN148-CMT2300AW RF-EB Usage Guideline_EN_V0.8
2018-12-04
AN147 CMT2300AW Features Usage Guideline-EN-V1.1-20201027
2018-12-04
AN146-CMT2300A Low Power Mode Usage Guideline_EN_V0.9_20170811
2018-12-04
AN144-CMT2300AW RSSI Usage Guideline_EN_V0.9
2018-12-04
AN143-CMT2300A FIFO and Packet Format Usage GuideLine_EN_V0.9_20170811
2018-12-04
AN142 CMT2300AW Quick Start Guide-Rev0.8
2018-12-04
AN141 CMT2300AW Schematic and PCB Layout Design Guideline Rev0.8
2018-12-04
AN150-CMT2300AW Low Voltage Transmitting Power Compensation_EN_V0.9
2018-12-04
AN199-CMT2300A-CMT2119B-CMT2219B RF Frequency Calculation Guide_EN
2021-01-25
AN149-CMT2300AW RF Parameter Configuration Guideline-EN-V1.0-20210125
2021-01-25
Certification & Test Reports:
RF Module ROHS
2021-05-18
RF Module REACH
2021-05-18
