RF Transceiver

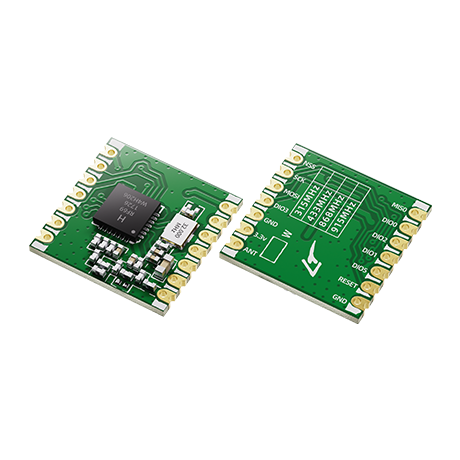

The RFM69CW is a RF transceiver module capable of operation over a wide frequency range, including the 315,433, 868 and 915MHz license-free ISM (Industry Scientific and Medical) frequency bands. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69CW offers the unique advantage of programmable narrow-band and wide- band communication modes.
The RFM69CW is optimized for low power consumption while offering high RF output power and channelized operation. Compliance ETSI and FCC regulations.
In order to better use RFM69CW modules, this specification also involves a large number of the parameters and functions of its core chip RF69's,including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM69CW modules, and enhance the application skills.
Applications of RF Transceiver Module RFM69CW:
● Automated Meter reading
● Wireless Sensor Networks
● Home and Building Automation
● Wireless Alarm and Security Systems
● Industrial Monitoring and Control
● Wireless M-BUS
Product Type：
RF ModuleT/R：
TRxModulation：
2(G)FSK/MSK/GMSK/OOKMaximumData Rate：
300KbpsFrequency Range：
315/433/868/915MHz Sub-1GHzSensitivity：
-120dBmOutput Power：
13dBmSize：
16*16*1.9mmPackage：
SPI
RFMXXB_TOOLS
UserGuide
RFXXB_TOOLS
RFDK_PIC16_LCD_V1_1hardware_131029
HopeRF_RF-EVB_manual_V1_21
HopeRF_RFDK_RFMxx_DEMO_V2_1_operation_manual
HopeRF_HSP_V1_3
CP210x_VCP_Windows
AN2001-RF69_communication_example
Application_ex_of_RFM69HCW_replacing_RFM22B
