RFM90CW

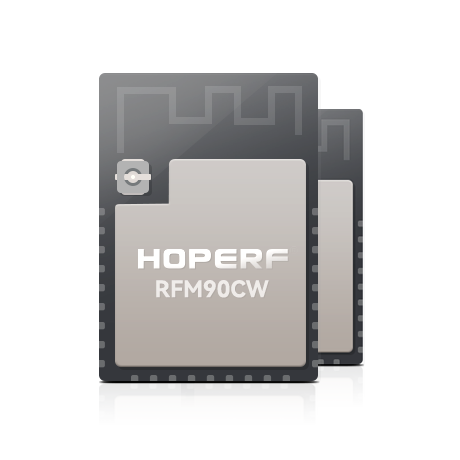

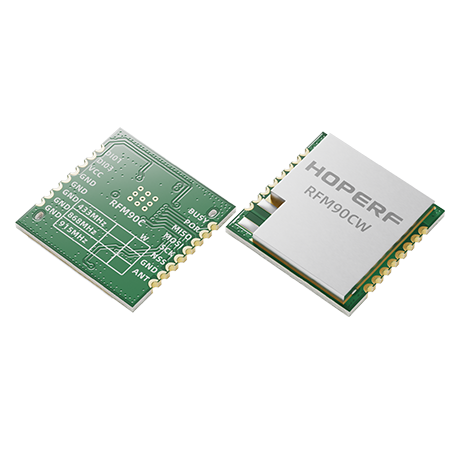

RFM90CW Low-Power Long-Range Transceiver Module


General Description


RFM90CW Sub-GHz radio transceivers are ideal for long range wireless applications. It is designed for long battery life with just 8mA of active receive current consumption. It can transmit up to +22dBm with highly efficient integrated power amplifiers. These devices support LoRa® modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWANTM standard or proprietary protocols.


KEY PRODUCT FEATURES


  • LoRa Modem

  • +22dBm RF Output

  • Programmable bit rate up to 300kbps(FSK)/62.5K(LORA)

  • High sensitivity: down to -137dBm@LoRa BW 125KHz ; SF12. -118dBm @FSK, 4.8kbps

  • Excellent blocking immunity

  • Low RX current of 8mA, 600 nA register retention

  • Fully integrated synthesizer with step 0.95 Hz

  • (G)FSK, (G)MSK, LoRaTM modulation

  • Built-in bit synchronizer for clock recovery

  • Preamble detection

  • 127dB Dynamic Range instantaneous/Packet RSSI

  • Automatic CAD

  • Module Size:16*16mm


Applications


The level of integration and the low consumption within RFM90CW enable a new generation of Internet of Things applications.


  • Smart meters

  • Supply chain and logistics

  • Building automation

  • Agricultural sensors

  • Smart cities

  • Retail store sensors

  • Asset tracking

  • Street lights

  • Parking sensors

  • Environmental sensors

  • Healthcare

  • Safety and security sensors

  • Remote control applications
