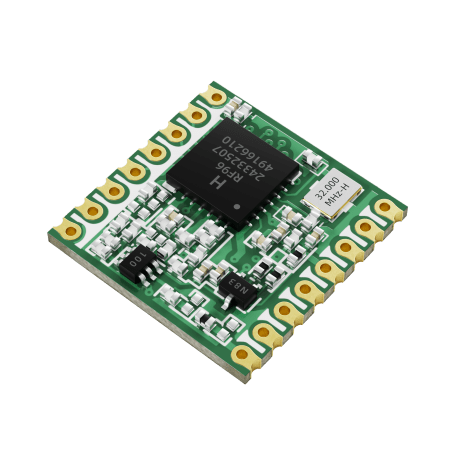

LoRa Module
RFM95W
Advanced mixed-signal design with a pioneering adaptive rate algorithm.
LoRa Module
The RFM95W transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Using Hope RF’s patented LoRaTM modulation technique RFM95W can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM95W deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.
Applications of RF Transceiver Module RFM95W:
● Automated Meter Reading.
● Home and Building Automation.
● Wireless Alarm and Security Systems.
● Industrial Monitoring and Control
● Long range Irrigation Systems
Modulation：
FSK/(G)FSK/MSK/(G)MSK/LoRa/OOKFrequency：
868/915MHzVDD：
2.4-3.7VMax.Data Rate：
300KbpsCurrent-Tx：
-Current-Rx：
10.3mASensitivity：
-140dBmOutput：
20dBmSize：
16*16mmInterface：
SPI
