EnhancedHopeRF's RFM23BP are highly integrated, low cost,433/470/868/915MHZ wireless ISM RF transceiver module. The low receive sensitivity(–120dBm) coupled with industry leading +30dBm output power ensures extended range and improved link performance. Built-in antenna diversity and support for frequency hopping can be used to further extend range and enhance performance.
Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX/RX FIFOs, automatic packet handling, and preamble detection reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, poweron-reset (POR), and GPIOs further reduce overall system cost and size.
The RFM23BP digital receive archit ecture features a high-performance ADC and DSP based modem which performs demodulation, filtering, and packet handling for increased flexibility and performance.
The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC, ETSI. An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market.

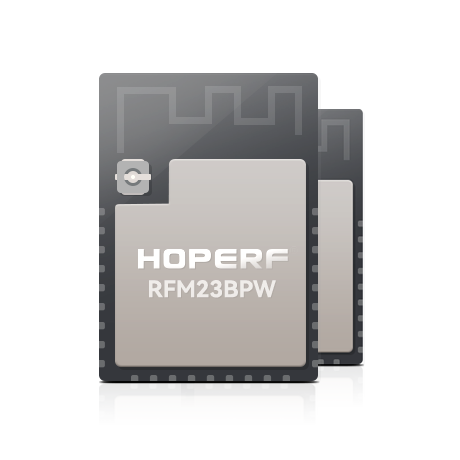

Applications of RF Transceiver Module RFM23BPW:
● Remote control Home security & alarm
● Telemetry Personal data logging
● Toy control
● Tire pressure monitoring
● Wireless PC peripherals
● Remote meter reading
● Remote keyless entry
● Home automation
● Industrial control
● Sensor networks
● Health monitors
●Tag readers
Product Type：
RF ModuleT/R：
TRxModulation：
2(G)FSK/(G)FSK/OOKMaximumData Rate：
256KbpsFrequency Range：
433/868/915MHz Sub-1GHzSensitivity：
-120dBmOutput Power：
30dBmSize：
18*33*1.9mmPackage：
SPI
