OOK Transmitting Wireless MCU

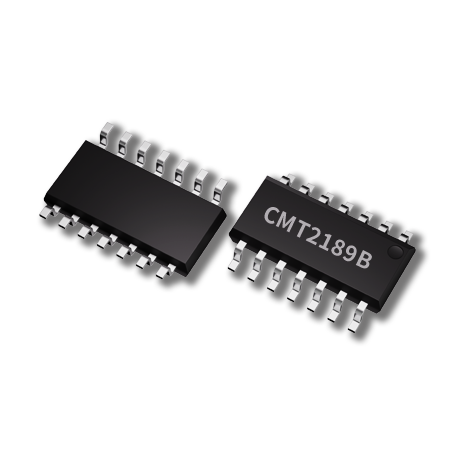

CMT2189BW
Advanced mixed-signal design on an independently innovated development platform.
OOK TransmittingThe CMT2189B devices are fully integrated, highly flexible, high performance, SoC OOK transmitters with embedded RISC microcontroller core for various 240 to 960 MHz wireless applications. They are part of the CMOSTEK NextGenRF TM family, which includes a complete line of transmitters, receivers and transceivers. The CMT2189B uses a 1-pin crystal oscillator circuit with the required crystal load capacitance integrated on-chip to minimize the BOM counts. The device can deliver up to +13 dBm output power nand the single-ended PA output. The device operates from 2.0 V to 3.6 V. Its low power design enables superior operation life for battery powered application. The CMT2189B transmitter together with CMOSTEK NextGenRF TM receiver enables a highly flexible, low cost RF link.
Product Type：
RF ChipT/R：
TXModulation：
OOKMaximumData Rate：
1-40KbpsFrequency Range：
240-960MHzSensitivity：
-Output Power：
13dBmSize：
8.65*6*1.75mmPackage：
SOP
