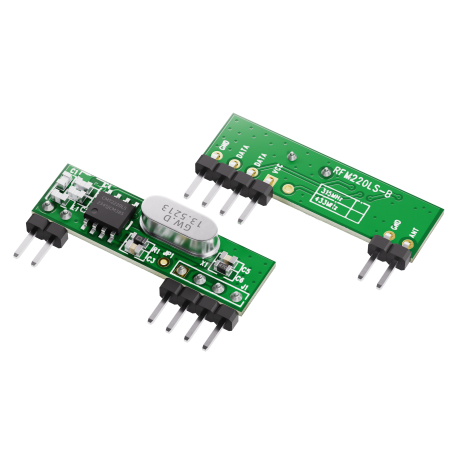

ASK/OOK Receiver Module
RFM220LS/B/D(W)
Advanced mixed-signal design on an independently innovated development platform.
-1_1695375199.png)
ASK/OOKRFM220LS/B/D is a low-cost ASK/OOK receiver module based on a high-performance CMT2220LS chip. Its operating frequency is 315MHz or 433.92MHz (the operating frequency can be customized in the range of 300MHZ-480MHZ). Its operating voltage is 3.0V-5.5V. The receiver module has stable performance, low power consumption, high sensitivity and high cost - effectiveness, and can be widely used in all kinds of data transmission systems.
This specification only describes the basic functions and performance parameters for this receiver module, and for further information, please refer to the CMT2220LS chip datasheet.
Typical Appplication:
⚫ Automatic control of homes and buildings
⚫ Replacement for infrared receiver
⚫ Industrial monitoring and control
⚫ Wireless metering
⚫ Wireless lighting control system
⚫ Wireless alarm and safety system
⚫ Remote access system
Product Type：
RF ModuleT/R：
RXModulation：
ASK/OOKMaximumData Rate：
5KbpsFrequency Range：
315/433.92MHz Low-frequencySensitivity：
-108dBmOutput Power：
-Size：
10*43.2*5mmPackage：
