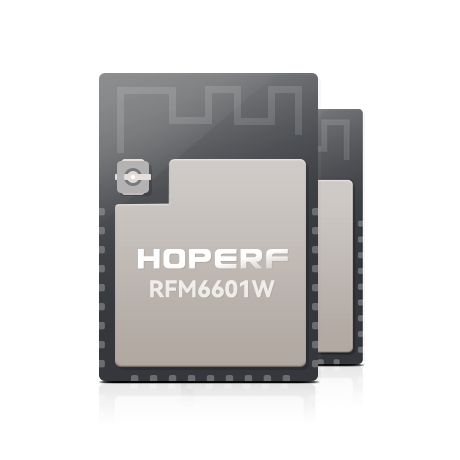

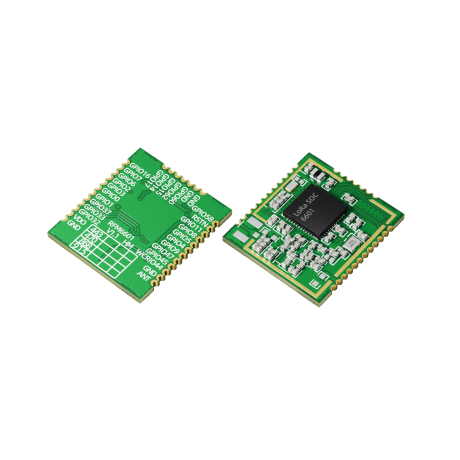

RFM6601W

LORA Transceiver Module





1. Overview


The RFM6601W module includes a general LoRa wireless communication SoC, integrated with a RF transceiver and a 32-bit RISC MCU. The MCU uses ARM Cortex M4, with 48 MHz operation frequency. The RF Transceiver has continuous frequency coverage from 150 MHz to 960 MHz. The RFM6601W Module provides ultra-long range and ultra-low power communication for LoRa application. RFM6601W can achieve a high sensitivity to -138 dBm and the maximum transmit power is up to +22 dBm. This makes the module suitable to be used in long range LoRa and have high efficiency.


2. Features


  • Working Voltage: 2.4V - 3.7V

  • Working Frequency: 433.92 MHz, 470 MHz, 868 MHz, 915 MHz

  • Receiving Sensitivity: -138 dBm @SF=12, BW=125KHz

  • Tx Current: 108mA @+22dbm, 433.92MHz

  • Rx Current: 10mA @433.92MHz


3. Applications


  • Smart meters

  • Supply chain and logistics ◼ Building automation

  • Agricultural sensors

  • Smart cities

  • Retail store sensors

  • Asset tracking

  • Street lights

  • Parking sensors

  • Environmental sensors

  • Healthcare

  • Safety and security sensors ◼ Remote control applications
