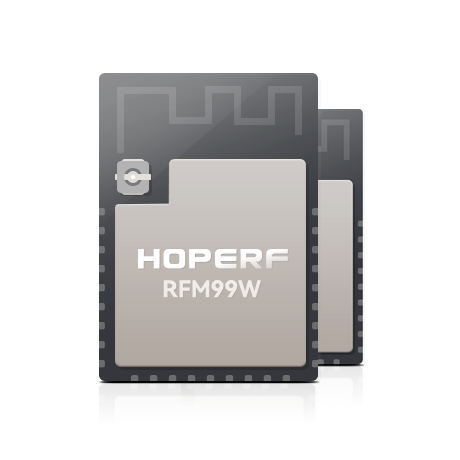

2.4GHz LoRa Wireless RF Transceiver Module
RFM99W
Advanced mixed-signal design with a pioneering adaptive rate algorithm.
2.4GHz LoRaThe RFM99W is a high cost-effective RF transceiver module with ultra-low power consumption, high sensitivity and long range communication. The module working on frequency of 2400~2500MHz, and to provide LoRa, FLRC and FSK these three modulation. The LoRa, FLRC modulation mode can greatly increase communication range, and also can be compatible with Bluetooth protocol.
Applications:
Smart Watches
Smart Home and BuildingAutomation
UAV
Remote Control Toys
IoT Industry
Industrial Sensors
Modulation：
LoRa/FSK/FLRCFrequency：
2400-2500MHz High-frequencyVDD：
1.8V-3.7VMax.Data Rate：
2048KbpsCurrent-Tx：
30mACurrent-Rx：
8.5mASensitivity：
-132dBmOutput：
12.5dbmSize：
14*24*1.95mmInterface：
SPI
