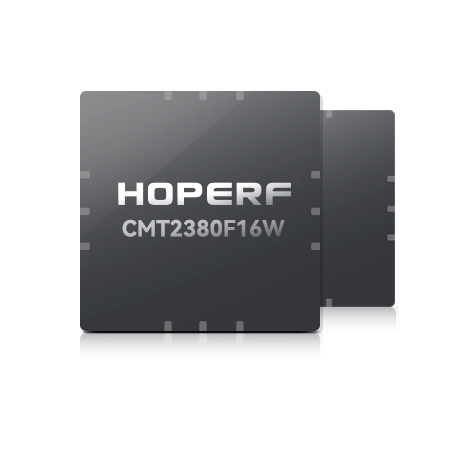

CMT2380F16W

Ultra Low Power Sub-1GHz RF-SoC


Descriptions


CMT2380F16 is an ultra-low power, high performance, OOK/(G)FSK RF-SoC, integrated with enhance 1-T 80C51 CPU,and an ultra-low power, high performance, OOK (G) FSK RF transceiver. CMT2380F16 operates from 1.8 to 3.6 V, up to +20 dBm Tx power and -121 dBm sensitivity, only 72 mA Tx current and 8.5 mA Rx current. It also include more peripheral, support enhance UART, I2C and SPI interface, up to 25 IO, support IHRC,

ILRC, 32.768 kHz Ext. Crystal, supports a variety of packet formats and codec methods, up to 64-byte Tx/Rx FIFO, Duty-Cycle operation mode, channel sensing, high-precision RSSI, low-voltage detection, power-on reset, low frequency clock output, manual fast frequency hopping, squelch and etc.


RF Features


  • Frequency range: 127 - 1020 MHz

  • Modem: (G)FSK,(G)MSK,OOK

  • Data Rate: 0.5 - 300 kbps

  • Sensitivity: -121 dBm @ 434 MHz,FSK

  • Rx current: 8.5 mA @ 434 MHz,FSK

  • Tx current: 72 mA @ 20 dBm, 434 MHz

  • Configurable packet handler and 64-Byte FIFO

  • Voltage range: 1.8 – 3.6 V

  • Operating Temperature: -40 – 85oC

  • QFN48 6mmx6mm


Applications


  • Automatic meter reading (AMR)

  • Home security and building automation

  • ISM band data communication

  • Industrial monitoring and control

  • Remote control and security system

  • Remote key entry

  • Wireless sensor node

  • Tag reader
