CMT2217AW

RF Receiver IC

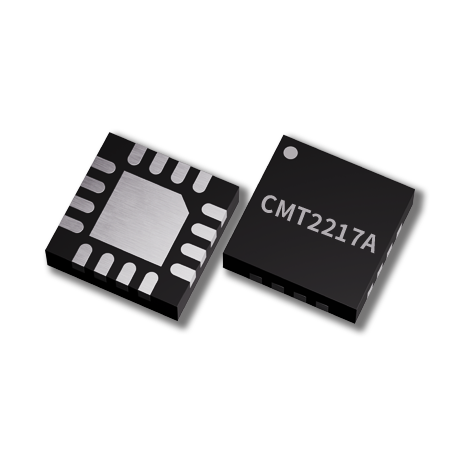

CMT2217AW receiver ic for remote solutions.png



1. Descriptions of RF Receiver IC CMT2217AW:


The CMT2217AW is an ultra low power, high performance, low-cost (OOK stand -alone RF receiver for various 300 to 960 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers.


An embedded EEPROM allows the frequency, symbol rate and other features to be programmed into the device using the CMOSTEK USB Programmer and RFPDK. Alternatively, in stock products of 315/915 MHz are available for immediate demands with no need of EEPROM programming. The CMT2217AW operates from a supply voltage of 1.8V to 3.6V, when it is always on, it consumes only 6 mA current while achieving -109 dBm receiving sensitivity (@9.6 ksps symbol rate).


It consumes even less power when working in duty-cycle operation mode via the built-in sleep timer. The device provides demodulated data, power-on reset output as well as a system clock output for use by an external microcontroller or decoder. CMT2217AWreceiver together with the CMT2217AW transmitter enables an ultra low cost RF link.


2. Features of RF Receiver IC CMT2217AW:


● Embedded EEPROM

       -Very Easy Development with RFPDK

       -All Features Programmable

● Frequency Range: 300 to 960 MHz

● OOK Modulation

● Symbol Rate: 1.2 to 3 0 ksps

● Sensitivity: -109 dBm at 9.6 ksps, 0.1% BER

● 3-wire SPI Interface for EEPROM Programming

● Stand-Alone, No External MCU Control Required

● Configurable Duty-Cycle Operation Mode

● Supply Voltage: 1.8 to 3.6 V

● Low Power Consumption: 6 mA

● Low Sleep Current

       -60 nA when Sleep Timer Off

       -440 nA when Sleep Timer On

● RoHS Compliant

● 16-pin QFN 3x3 Package


3. Applications of RF Receiver IC CMT2217AW:


● Low-Cost Consumer Electronics Applications

● Home and Building Automation

● Infrared Receiver Replacements

● Industrial Monitoring and Controls

● Remote Automated Meter Reading

● Remote Lighting Control

● Wireless Alarm and Security Systems

● Remote Keyless Entry (RKE)


Design documents and resources
DEMO & Tools:
RFDK_PIC16_LCD V1.1hardware(131029)
2018-11-22
AN2004-RF67 communication example
2018-12-03
HopeRF_RFDK_RFMxx_DEMO_V2.1_operation_manual
2018-11-22
HopeRF_RF-EVB_manual_V1.21
2018-11-22
AN0002-Hopeduino platform construction guideline
2018-11-20
AN108 CMT2210-17A Configuration Guideline
2018-12-03
AN107 CMT2210A Schematic and PCB Layout Design Guideline
2018-12-03
AN1001-CMT211xA & CMT221xA communication example
2018-12-03
RFPDK_V1.53_Update4_Setup
2022-12-08
WriterConfig_V1.4.3_Beta1_Setup
2023-06-09
Design Guides:
AN0002-Hopeduino platform construction guideline
2018-11-22
AN157-CMT221xLH-Configuration Guide-EN-V0.9
2019-04-01
Certification & Test Reports:
RF IC ROHS
2023-05-05
RF IC REACH
2023-05-05
