Description:

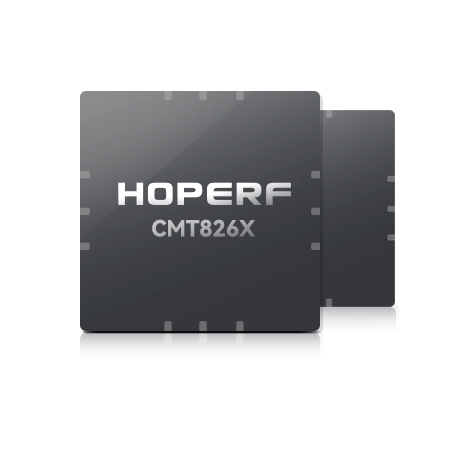

The CMT826X series devices are high-performance, six channel digital isolators with as high as 5 kVrms isolation voltage by means of silicon-dioxide (SiO2) insulation barrier.
The digital isolator is used for communication between two different power supply domains while prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. CMT826X device has six forward and up to three reversedirection channels. If the input power or signal is lost, the
default output is high for the CMT826X1 device and low for the CMT826X0 device. See the Device Functional Modes section for further details. The isolator provides high electromagnetic immunity and low emissions at low-power consumption. Through innovative chip design and layout techniques, electromagnetic compatibility of the CMT826X device has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The CMT826X series device is available in both narrow-body
(NB) and wide-body (WB) 16-pin SOIC packages.

Features:

•  Safety-related certifications
  • DIN VDE V 0884-11: 2017-01
  • UL 1577 component recognition program
  • CSA certification according to IEC 60950-1, IEC 62368-1, IEC 61010-1 and IEC 60601-1 end equipment standards
  • CQC approval per GB4943.1-2022
  • TUV certification according to EN 60950-1, EN 62368-1 and EN 61010-1

• Robust electromagnetic compatibility
  • System-level ESD, EFT, and surge immunity
  • ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
  • Low emissions

• Data rate: up to 150 Mbps

• Wide supply range: 2.5 to 5.5 V

• Operation temperature: -40°C to 125°C

• Robust isolation barrier
  • More than 40-year projected lifetime
  • Up to 5 kVRMS isolation rating
  • Up to 8 kV surge capability
  • ±250 kV/μs typical CMTI

• Default output high and low options

• Low power consumption, typical 1.5 mA per channel at 1 Mbps

• Low propagation delay: 9 ns typical (5V supplies)

• SOIC 16 package (wide body and narrow body)

Applications:

•  Industrial automatic control

• New energy vehicles

• Solar inverters

• Motor control

• Isolated SPI

• General purpose multichannel isolation
