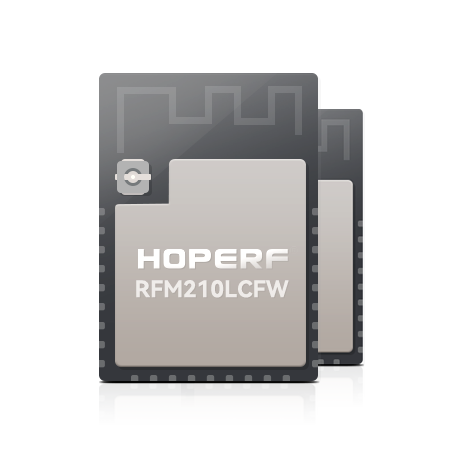

RFM210LCFW
315/433MHz Receiver Module
RFM210LCFW
Advanced mixed-signal design on an independently innovated development platform.
315/433MHz
Receiver Module

RFM210LCFW/RFM210LCFW-A is a ASK/OOK wireless data receiver, ultra low power consumption, high sensitivity, long distance communication, cost-effective ASK/OOK RF receiver module, suitable for ISM band wireless applications.It has the characteristics of good anti-interference and high reliability, and it cannot be affected the working distance even in the situation of complex interference environment. The Module is provided by two versions base on 315MHz and 433.92MHz, both of them support 1~5kbps data rate. Users only need to attach a simple data decoding circuit to achieve the development of wireless products easily.

Application of RF Receiver Module RFM210LCFW:

● Remote Entrance Guard
● Battery Car Security System
● Remote Socket
● Remote Doorbell
● Wireless Data Transmission
● Wireless Lighting Control
● Remote Control Toys
● Remote Control Home Appliances
● Wireless Alarming & Security System

Product Type:

RF Module

T/R:

RX

Modulation:

ASK/OOK

MaximumData Rate:

5Kbps

Frequency Range:

315/433.92MHz Low-frequency

Sensitivity:

-114dBm

Output Power:

-

Size:

32*11*5mm

Package:

TWI
