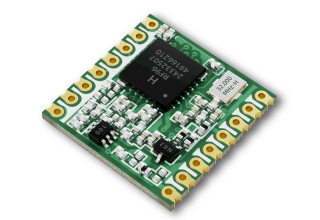

RF LoRa Module
RFM98PW/RFM95PW RF LoRa Transceiver module series’ design is based on the high performance LoRaTM modulation technique RF98/RF96 chip, It operate at 169/433/470MHz (RFM98PW) and 868/915MHz(RFM95PW) ISM band , The low receive sensitivity(–136dBm) coupled with Enhanced +30dBm output power ensures extended range and improved link performance.
Typical Application of RF LoRa Transceiver Module RFM95PW:
● Long Range system
● Meter Reading
● Wireless data collection
● Automobile security system
● Home automation and security system
Modulation：
FSK/(G)FSK/MSK/(G)MSK/LoRa/OOKFrequency：
868/915MHz High-frequencyVDD：
5-6VMax.Data Rate：
300KbpsCurrent-Tx：
-Current-Rx：
13mASensitivity：
-136dBmOutput：
30dBmSize：
35.4*18*3.85mmInterface：
SPI
RFDK_PIC16_LCD_V1_1hardware
RFMXXB_TOOLS
RFXXB_TOOLS
HopeRF_RFDK_RFMxx_DEMO_V2_1_operation_manual
HopeRF_RF-EVB_manual_V1_21
HopeRF_HSP_V1_3
CP210x_VCP_Windows
RFM9x_GUI_Setup_V1_1
RFM9x_GUI_User_Guide_V1_0_EN
